AURSINC NanoVNA-H4 Vector Network Analyzer 10KHz -1.5GHz HF VHF UHF Antenna Analyzer + Handheld Antenna Cable - RF Coax SMA Male to UHF Female SO-239 Cable 2-Pack
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

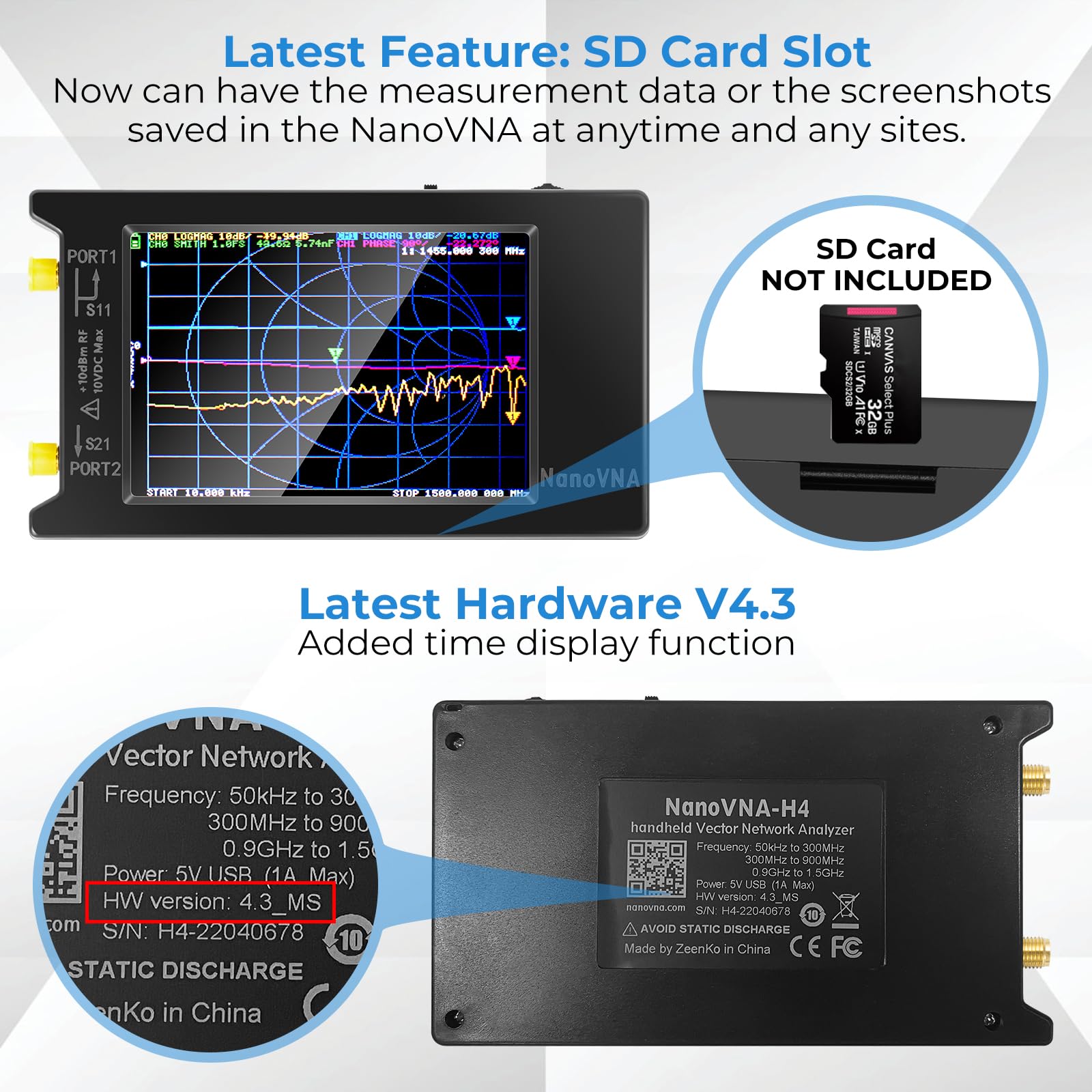

•[Nanovna-H4] AURSINC NanoVNA-H4 vector network analyzer is a Hugen Origin that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, with 1950mAh battery powered or USB powered. With latest HW 4.3 version, Nanovna-H4 is added a brand new panel plus added a new SD port for data storage(support up to 32GB memory card, not included in the package)
•[Nanovna-H4] Improved Frequency Algorithm - The improved frequency algorithm of NanoVNA-H4 can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.
•[Nanovna-H4]Antenna Performance Measurement - The default firmware main function for NanoVNA-H4 vector network analyzer is used for antenna performance measurement. It has good RF performance for S-parameter measurements as previous models.The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring
•[Antenna Cable] Cable: RF Coax SMA Male to UHF Female SO-239 Extension Antenna Cable( RG316) Impedance: 50 Ohm, RG316 Copper Cable, Cable Length: 60cm/2ft
•[Antenna Cable] Cable Type: RG316 coaxial copper low-loss; Adapter: SMA Male to so239 （UHF Female） Straight Adapter Applications: Amateur Radios, CB Antennas, Coaxial cable, Radio Scanner, Ham Radio Transceiver, Radio Handheld & Amateur Radio Equipment, Portable Spectrum Analyzer
