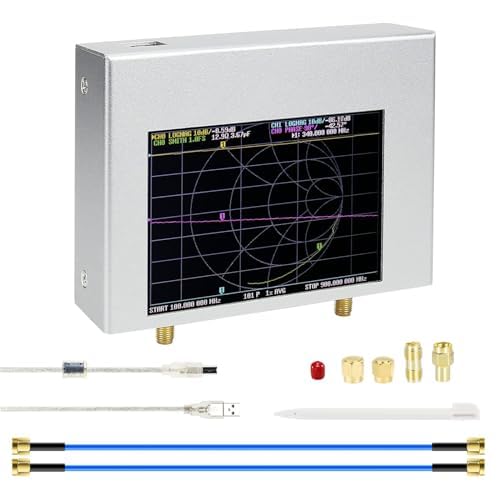

AURSINC Upgraded NanoVNA V2 Plus5 (V2 PLUS4 Pro) Vector Network Analyzer&SMA Calibration Kits Test and jumper pcs2
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

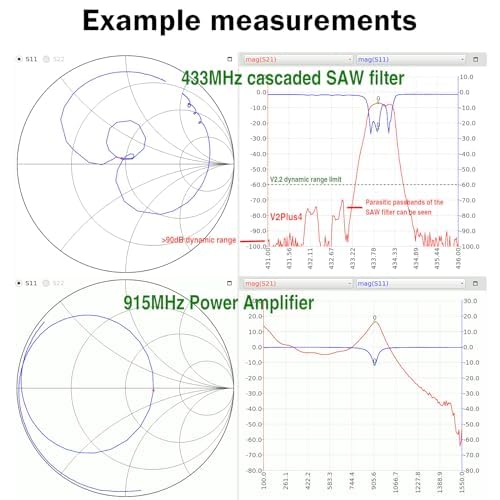

•[NanoVNA V2 Plus5] Compared to NanoVNA V2 PLUS4, the V2 PLUS4 Pro has the same appearance as the plus4, with a few more options in the menu. Update: 1. Hardware added bandwidth adjustment function; 2. It can measure narrowband devices, such as crystal oscillators; 3. The maximum scan speed is faster than before, the default parameter is 0.16 seconds per scan, instead of 0.25 seconds

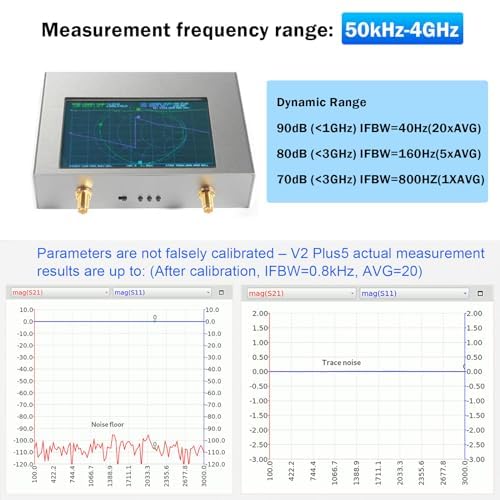

•[NanoVNA V2 Plus5] NanoVNA V2 Plus5 is a 4GHz T/R vector network analyzer developed by HCXQS in collaboration with OwOComm. Compared to earlier NanoVNA versions, V2 does not use harmonics for measurements and reaches to 90dB dynamic range. NanoVNA V2 Plus5 provides a 50KHz-4GHz frequency range, has improved shielding that achieves high dynamic range with an aluminum enclosure
•[NanoVNA V2 Plus5] PC control via two PC applications (NanoVNA Saver / NanoVNA-QT), computer software compatible: Linux, Windows (7 or above), Mac OS. It works well with a computer to print out Standing Wave Ratios, Smith Charts and other Antenna related information over various frequency ranges
•[SMA Calibration Kits and jumper pcs2] Frequency: DC to 3GHz. Connector: SMA male for Short and Load. Material: Copper, Shape: Circle. Inpedance: 50 Ohm. VSWR: less than 1.1
•[SMA Calibration Kits and jumper pcs2] This Calibration kits can use to calibrate Vector Network Analyzer, like Nanovna, Nanovna-H, Nanovna-h4, Nanovna SAA-2N, Nanovna F, mini1300, PS100 and so on
