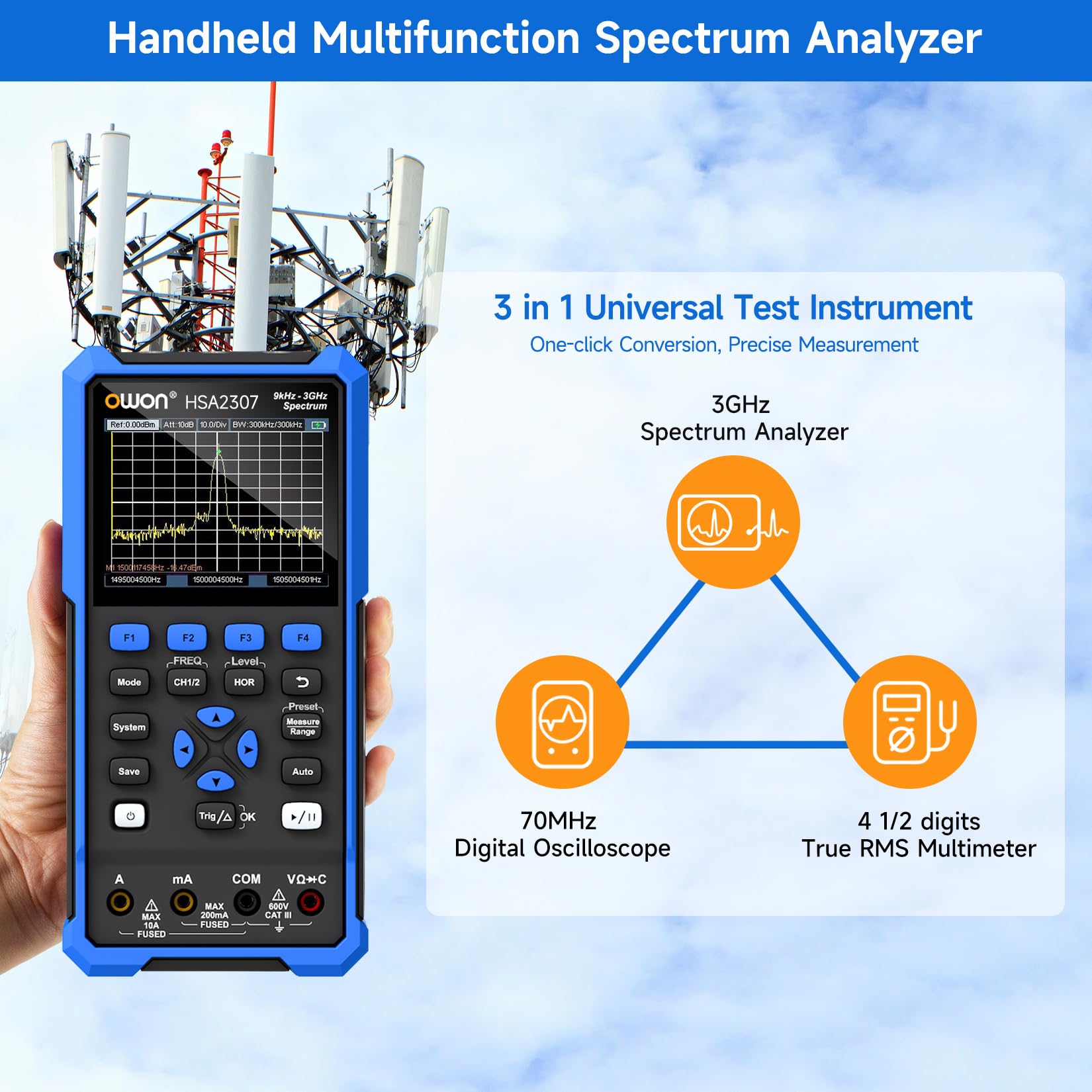

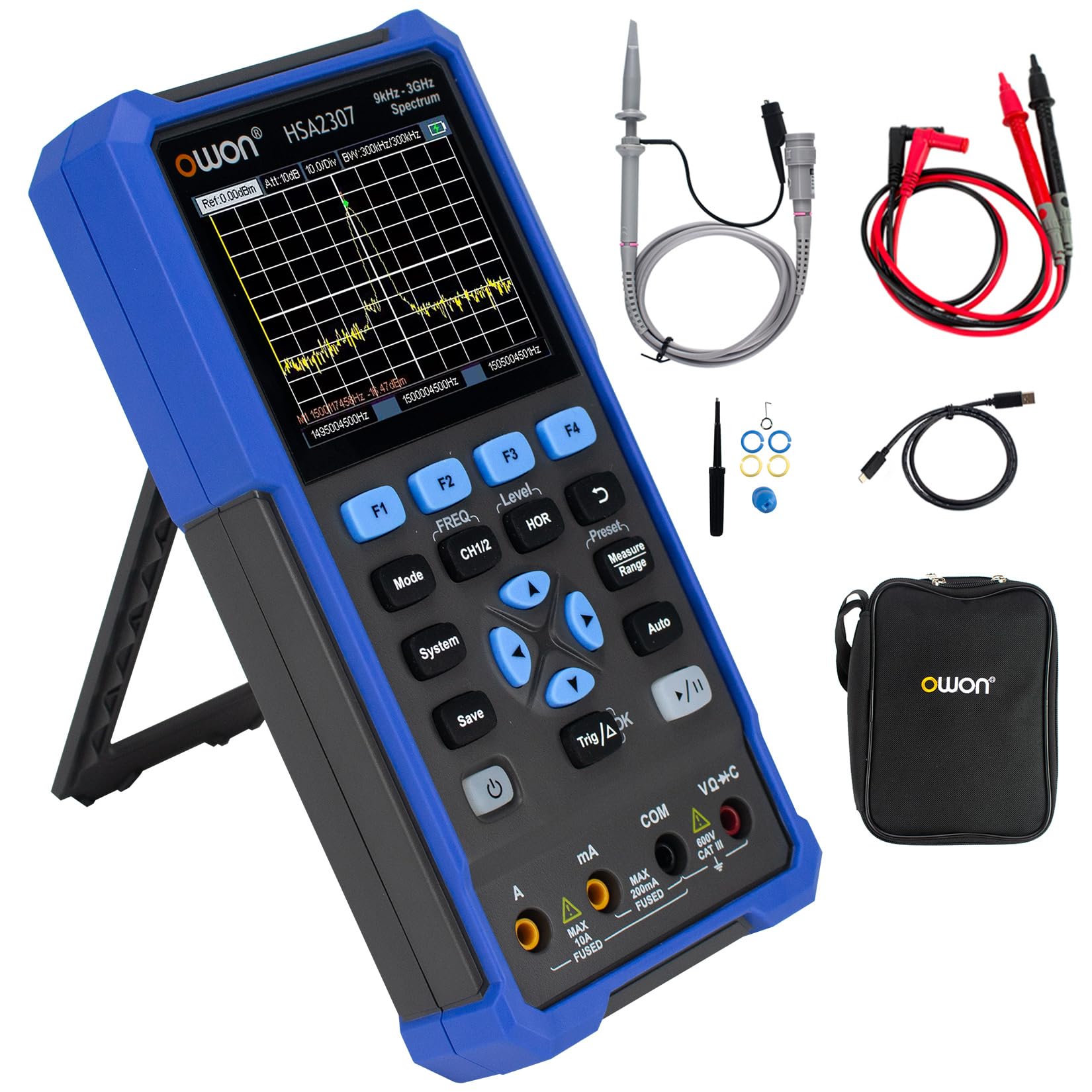

OWON Handheld Spectrum Analyzer with Oscilloscope and Multimeters,Frequency Range 9kHz to 3GHz, with 3.5inch LCD Screen Display 70MHz Bandwidth HSA2307
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

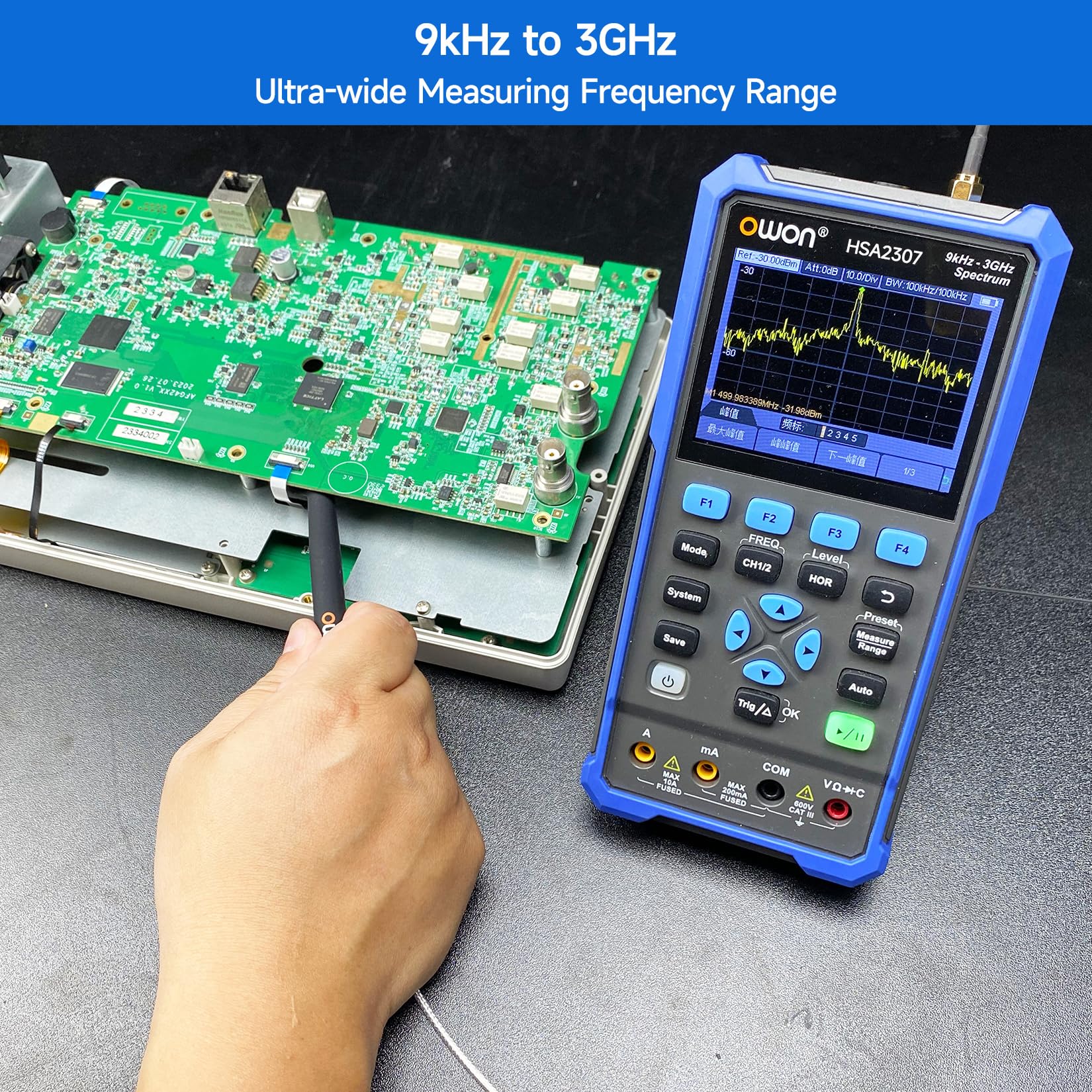

•【Spectrum Analyzer】Adopt All digital intermediate frequency technology, frequency range 9kHz - 3.2 GHz, displayed average noise level (DANL): max -120 dBm(10MHz to 2GHz), max -115 dBm(2GHz to 2GHz); phase noise: -62 dBc/Hz @ 1 GHz and offset at 10 kHz

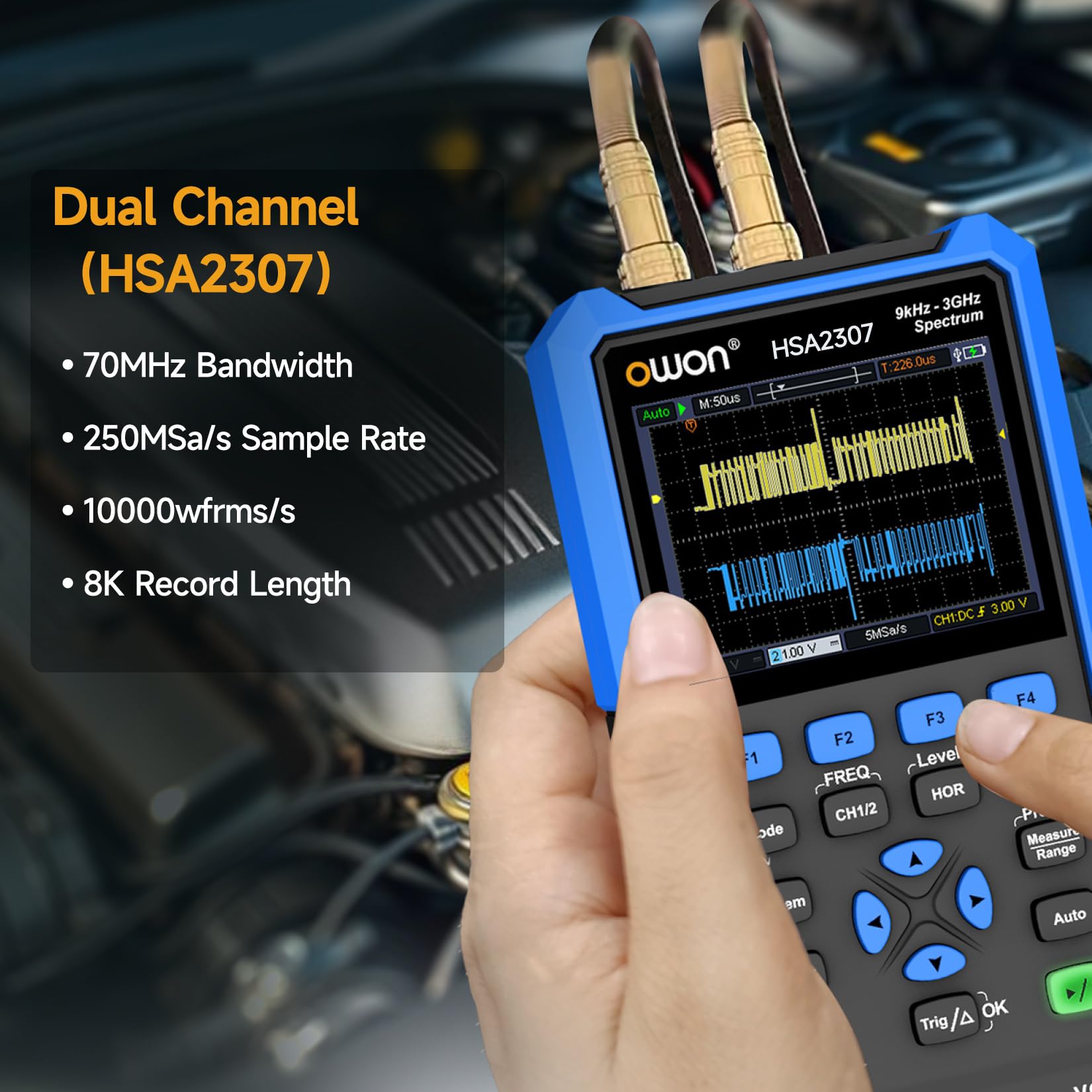

•【Oscilloscope Mode】With 2 channel handheld oscilloscope, 70MHz bandwidth, real-time sampling rate 250MSa/s, record depth 8K, Up to 10,000 wfrms/s waveform refresh rate, automatic measurement function, trigger function auto/normal/single

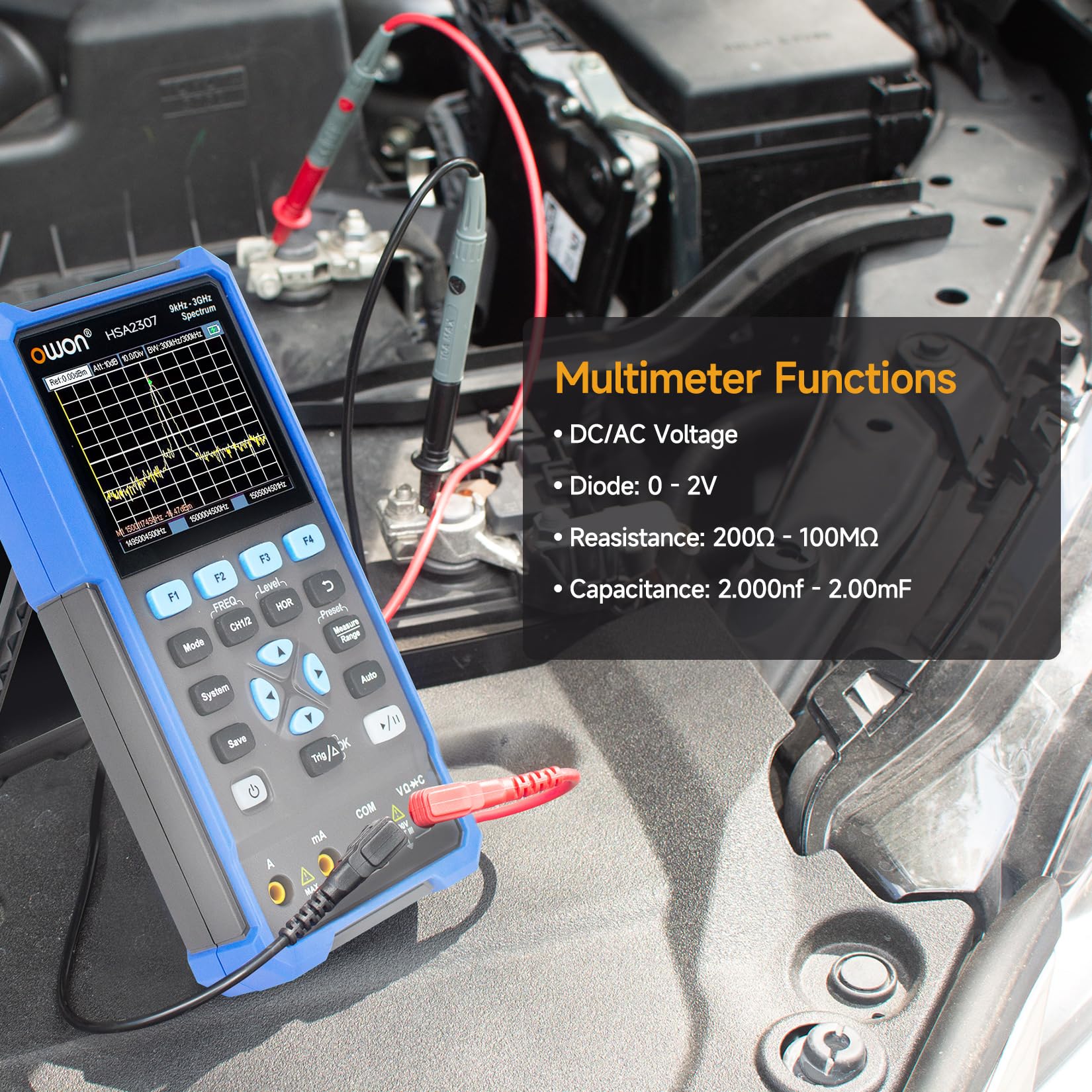

•【Multimeter Mode】With 4-digit 20000 Counts. AC Voltage: 20.000mV-750V, DC Voltage: 20mV-1000.0V, DC/AC Current: 20.000mA-9.999A, Resistance: 200.00-99.99MΩ, Capacitance: 2.000nF-1.9999mF, Diode, Continuity Measurement. Perfect for professionals, factories, schools, hobbyists, or home use.
•【Multi Function】Provide multiple extended function modes, standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter etc
•【Save Function】Have save and screening functions. Easily upload saved images to your PC via the Type-C connection. Effortlessly compare waveforms by displaying the reference and measured waveforms on the same screen.
