Testboard Kit NanoVNA Antenna Analyzer, AURSINC Test Demo Set Tool Compatible with DIP Quickly Assemble a Simple RF Circuit and Evaluate Performance on NanoVNA H H4
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

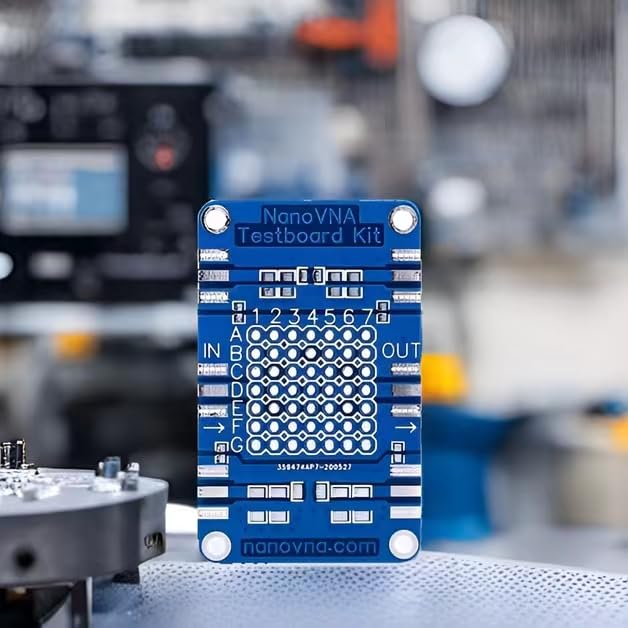

•The Testboard kit allows NanoVNA users to assemble a useful Component jig to quickly assemble a simple RF circuit and evaluate their performance on the NanoVNA
•This test board contains a plug-in test circuit suitable for VNA Testboard, and a set of 0805 and 1206 patch test circuits are added

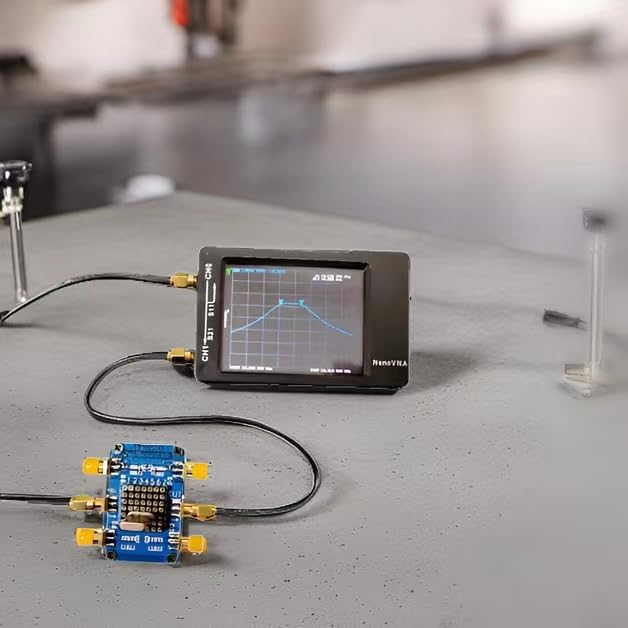

•The testboard kit is utilized for user-friendly measurement of DIP and SMT devices with NanoVNA or other vector analyzers
•Product come unassembled, you need to assemble according to your purpose. Please prepare your own welding tools and build a test circuit according to your test needs. We are not responsible for circuit guidance
•The SMT circuit cannot fully consider all test conditions. Some tests may need to be cut over. Please ensure you have sufficient practical skills
•Package include: 1x Testboard Printed Circuit Board (Compatible with DIP pads of VNWA Testboard and add 0805 and 1206 STM pads), 6x SMA End Connectors (same type as in NanoVNA), 4x Copper 8mm spacers, 4x M2.5 4mm screws, 2x 40 pin female SIL Socket
