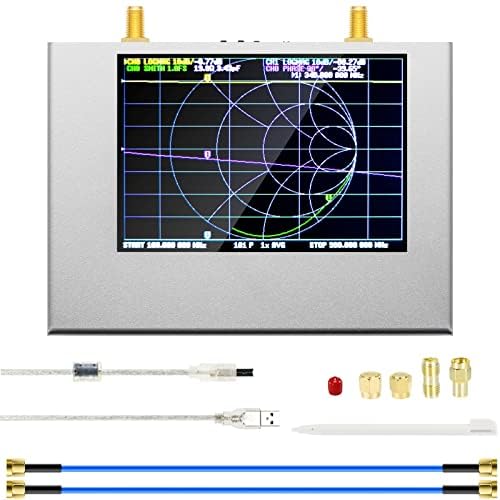

Upgraded AURSINC NanoVNA V2 PLUS4 Vector Network Analyzer&2PCS SMA Male to Male Coax Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•[NanoVNA V2 PLUS4] NanoVNA V2 Plus4 (S-A-A-2) is a 4GHz Transmission / Reflection vector network analyzer, measuring the S11 Reflection coefficient and the S21 Transmission coefficient of a high frequency network. With the latest version V2.4, update firmware: nanorfe .com/nanovna-versions.html
•[NanoVNA V2 PLUS4] AURSINC NanoVNA V2 Plus4 provides a 50KHz-4GHz ultra-wide frequency range with an improved precision and accuration. And V2 Plus4 does not use harmonics for measurements. The system dynamic range for this nano vna is reaches to 90dB dynamic range (1GHz) and reaches to 80dB dynamic range (3GHz)

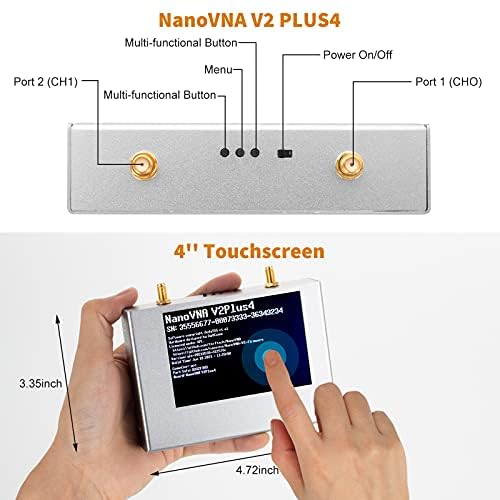

•[NanoVNA V2 PLUS4] With 4inch large touchscreen, you can flip the display(Menu - Display - Flip Display). All-aluminum alloy design, effective anti-interference. The scanning speed of NanoVNA V2 antenna analyzer increases by 4 times (400 points/sec). Low temperature drift, V2 Plus4 automatically internally corrects drift errors to achieve highly repeatable measurements
•[2PCS SMA Male to Male Coax Cable] SMA Male Cable length: 11.8inch (30cm). SMA Coax Cable Helps convert Handheld Radio to Antenna with SMA Male to SMA Male
•[2PCS SMA Male to Male Coax Cable] Connectors SMA Male Used to connect SMA female adapter or SMA device, commonly used in RF Applications, Antennas, Wireless LAN Devices , RF Coaxial Connector, RF Coaxial cable, Wi-Fi Radios External Antenna, etc.
